TOPKLEAN EL 20A
Co-solvent cleaning fluid
- Removal of flux residues
- Co-solvent process
- Legacy product
TOPKLEAN EL 20A
Is a legacy product used for over 15 years by many actors in the electronic & semicon industry to clean solder flux residues after reflow. At INVENTEC we constantly challenge ourselves to make a great product even better. Today we recommend TOPKLEAN EL 80, which not only offers even better performance but also excels from a sustainable point of view.
It is used in co-solvent process to offer a fast & sustainable cleaning process with very high cleaning efficiency. In this process, TOPKLEAN EL 20A is rinsed perfectly with solvents from our PROMOSOLV range.
The co-solvent process has been a game changer for over 15 years now. It has been developed to replace solvents with a high HSE impact with a more sustainable solution and with equally strong cleaning performance. It particularly stands out when addressing low stand-off components. In contrast, a water-based cleaning system carries the risk that the cleaning chemistry may not be adequately removed due to the significantly higher surface tension of water.

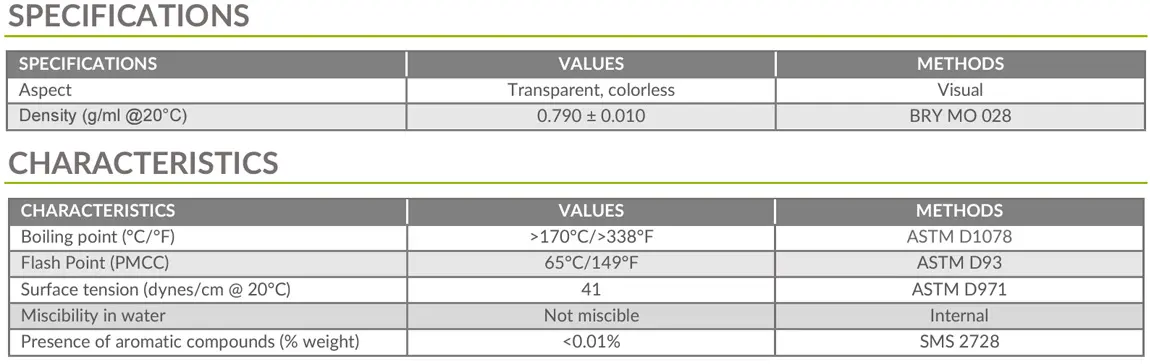

| SPECIFICATIONS | VALUES | METHODS |
|---|---|---|
| Aspect | Transparent, colorless | Visual |
| Density (g/ml @20°C) | 0.790 ± 0.010 | BRY MO 028 |
| CHARACTERISTICS | VALUES | METHODS |
|---|---|---|
| Boiling point (°C/°F) | >170°C / >338°F | ASTM D1078 |
| Flash Point (PMCC) | 65°C / 149°F | ASTM D93 |
| Surface tension (dynes/cm @ 20°C) | 41 | ASTM D971 |
| Miscibility in water | Not miscible | Internal |
| Presence of aromatic compounds (% weight) | <0.01% | SMS 2728 |
Show links
Hide linksThis is not a product
Although fully in line with safety & environmental regulations, this product doesn`t match our strict criteria to be labelled as a Greenway product.
LOOKING FOR A MORE SUSTAINABLE SOLUTION?
GREENWAY ALTERNATIVE
- We currently don`t have a Greenway alternative but our target is to develop one in the near future. In case you want us to prioritize the development of a Greenway alternative, do not hesitate to contact us.
Benefits
Performance
- Excellent solubility of organic & mineral residues
- Excellent compatibility with materials used on PCB’s
- Very low surface tension to allow excellent cleaning under low stand-off components
- Allows shining effect to sensitive alloys & soldered surfaces
Cost
- Fast process allows increase in production capacity
- Rinsing fluid is constantly recycled, limiting consumption.
- No water consumption & no need for wastewater treatment
HSE
- No Ozon Depletion Potential (ODP)
- No Global Warming Potential (GWP)
- Relative high flash point – safe to use, storage & transport
- No aromatics & halogenated compounds
Process examples

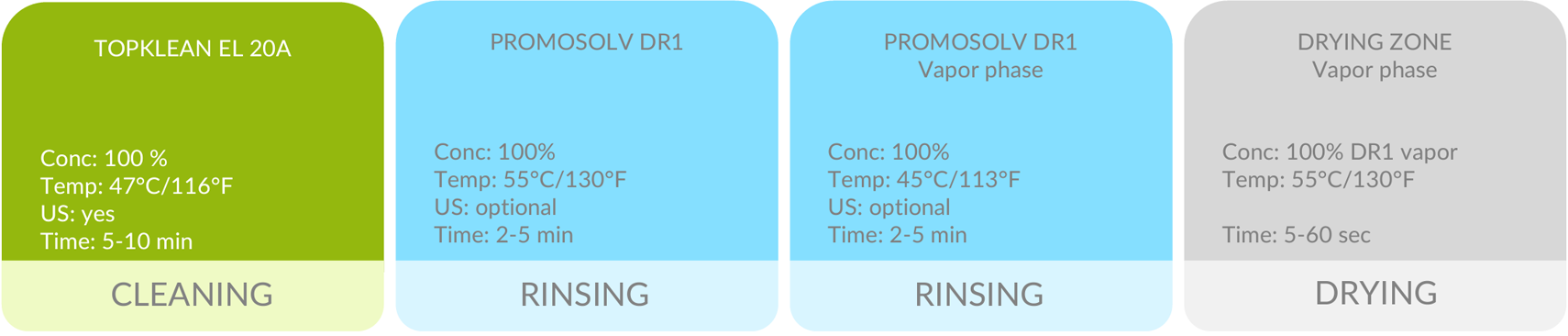

SEPARATED CO-SOLVENT PROCESS
MIXED CO-SOLVENT PROCESS
