TOPKLEAN EL 20D
Removal of Flux Residues in Vacuum Process
- Removal of flux residues
- Solvent vacuum process
- Thermally and chemically stable in use
TOPKLEAN EL 20D
Is especially designed to remove fluxes residues in vacuum process to offer an environmentally friendly solvent solution without compromising on high cleaning performance. Its performance in solubilizing organic compounds allows it to remove flux residues on PCB’s after soldering. Topklean EL 20D is compatible with most of materials (metals, glasses, ceramics & plastics) used in electronic assembly.
TOPKLEAN EL 20D is qualified and used by several actors in the electronic industry and is compliant with ROHS.

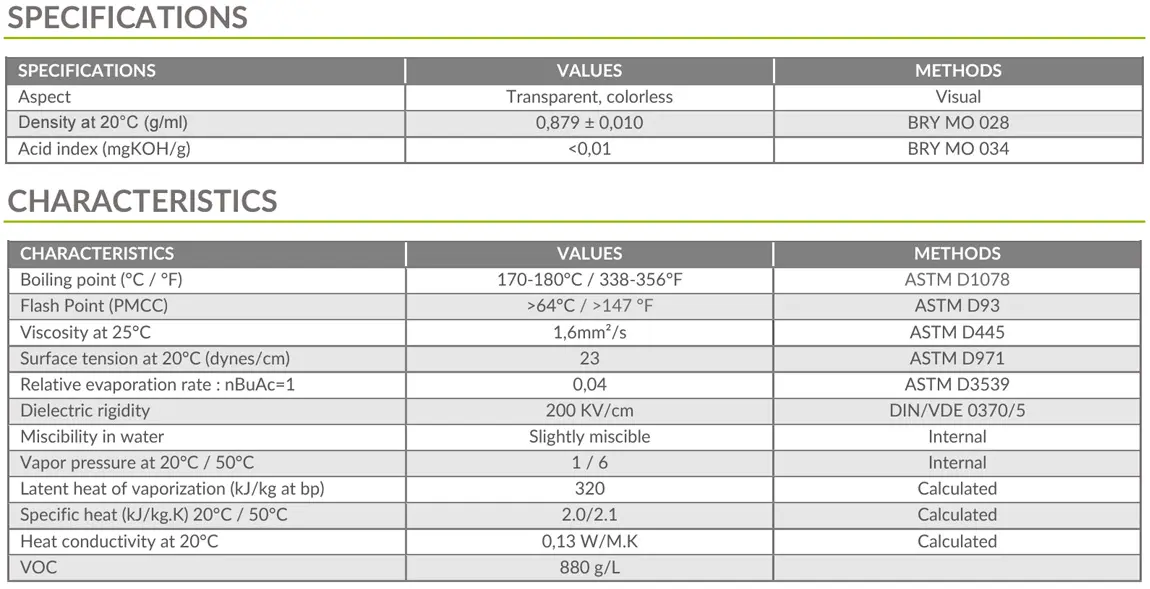

SPECIFICATIONS
| SPECIFICATIONS | VALUES | METHODS |
|---|---|---|
| Aspect | Transparent, colorless | Visual |
| Density at 20°C (g/ml) | 0,879 ± 0,010 | BRY MO 028 |
| Acid index (mgKOH/g) | <0,01 | BRY MO 034 |
CHARACTERISTICS
| CHARACTERISTICS | VALUES | METHODS |
|---|---|---|
| Boiling point (°C / °F) | 170–180°C / 338–356°F | ASTM D1078 |
| Flash Point (PMCC) | >64°C / >147°F | ASTM D93 |
| Viscosity at 25°C (mm²/s) | 1,6 | ASTM D445 |
| Surface tension at 20°C (dynes/cm) | 23 | ASTM D971 |
| Relative evaporation rate (nBuAc = 1) | 0,04 | ASTM D3539 |
| Dielectric rigidity (KV/cm) | 200 | DIN / VDE 0370/5 |
| Miscibility in water | Slightly miscible | Internal |
| Vapor pressure at 20°C / 50°C | 1 / 6 | Internal |
| Latent heat of vaporization (kJ/kg at bp) | 320 | Calculated |
| Specific heat (kJ/kg·K) at 20°C / 50°C | 2.0 / 2.1 | Calculated |
| Heat conductivity at 20°C (W/m·K) | 0,13 | Calculated |
| VOC (g/L) | 880 | — |
Show links
Hide linksThis is not a product
Although fully in line with safety & environmental regulations, this product doesn`t match our strict criteria to be labelled as a Greenway product.
LOOKING FOR A MORE SUSTAINABLE SOLUTION?
GREENWAY ALTERNATIVE
- We currently don`t have a Greenway alternative but our target is to develop one in the near future. In case you want us to prioritize the development of a Greenway alternative, do not hesitate to contact us.
Benefits
Performance
- Good solubility of fluxes residues
- Excellent compatibility with pcbs, metals, glasses, ceramic & many plastics
Cost
- Continuous recycling in equipment for a long bath-life
- Limited consumption thanks to airtight equipment
- Thermally and chemically stable in use, so no need of using an additive
HSE
- Very low toxicity (refer to the SDS)
- No Ozon Depletion Potential (ODP)
- No Global Warming Potential (GWP)
- High flash point
- No aromatics & halogenated compounds

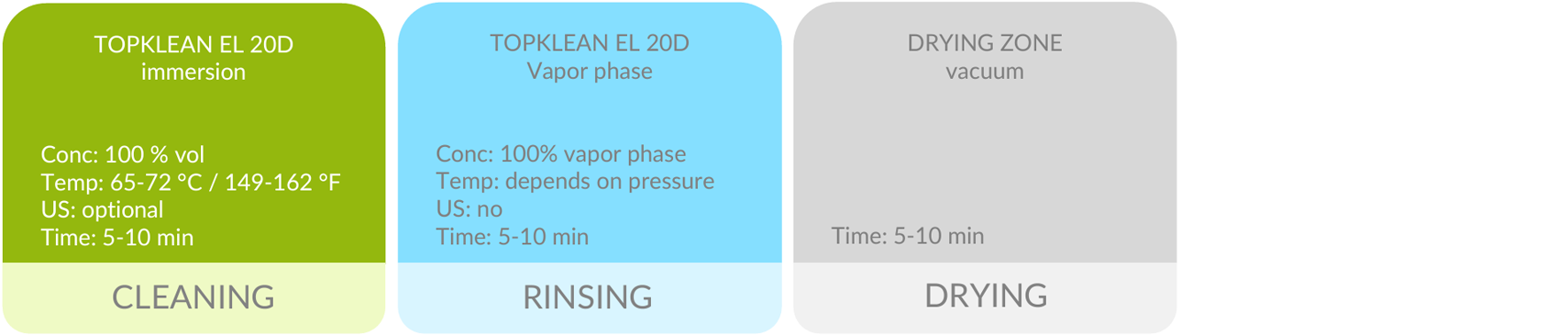

Process example
The best process will depend on factors such as operating conditions, equipment, desired cleaning time and the nature of contaminants. Our team is ready to advise you.
Flux residues removal
