TOPKLEAN MC 20C
High-Performance Solvent Cleaner for Oils, Residues, and Dewatering
- Oil removal
- Aqueous Immersion & Co-solvent process
- Versatile Process & Application
TOPKLEAN MC 20C
Is an oxygenated solvent-based cleaning fluid to remove hydrocarbon oils, most water-soluble oils, and fingerprint residues from all metals and most plastics. It is also suitable for use as a dewatering agent in solvent-based drying processes.
Designed for versatility, it supports a wide range of contaminants and different cleaning processes (aqueous immersion & co-solvent), helping to reduce the number of different products needed within a single facility.
TOPKLEAN MC 20C is qualified and used by several actors in the Micromechanics industry.

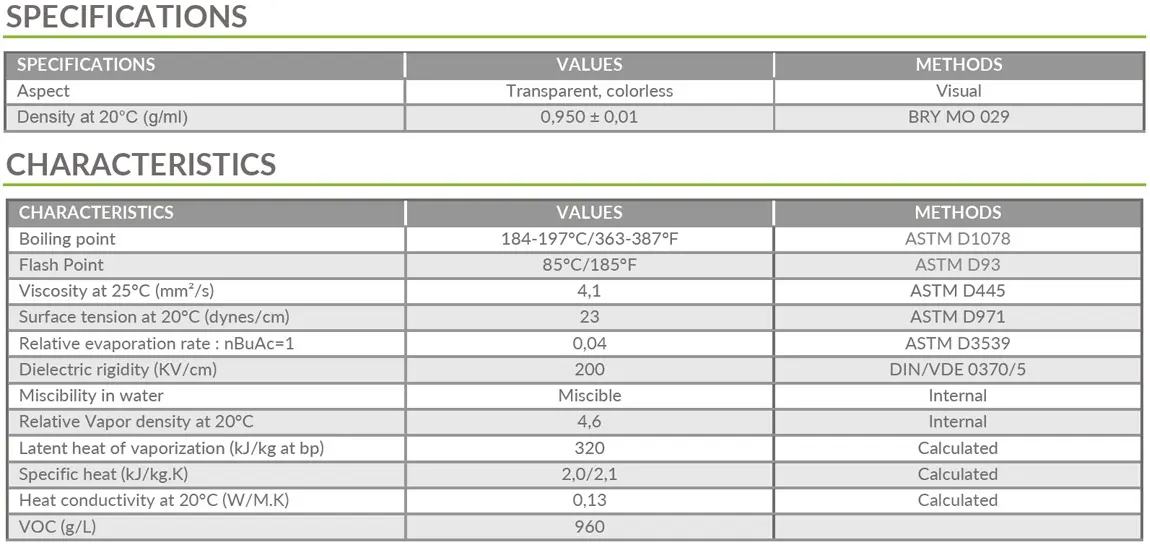

SPECIFICATIONS
| SPECIFICATIONS | VALUES | METHODS |
|---|---|---|
| Aspect | Transparent, colorless | Visual |
| Density at 20°C (g/ml) | 0.950 ± 0.01 | BRY MO 029 |
CHARACTERISTICS
| CHARACTERISTICS | VALUES | METHODS |
|---|---|---|
| Boiling point | 184-197°C / 363-387°F | ASTM D1078 |
| Flash Point | 85°C / 185°F | ASTM D93 |
| Viscosity at 25°C (mm²/s) | 4.1 | ASTM D445 |
| Surface tension at 20°C (dynes/cm) | 23 | ASTM D971 |
| Relative evaporation rate (nBuAc = 1) | 0.04 | ASTM D3539 |
| Dielectric rigidity (KV/cm) | 200 | DIN / VDE 0370/5 |
| Miscibility in water | Miscible | Internal |
| Relative vapor density at 20°C | 4.6 | Internal |
| Latent heat of vaporization (kJ/kg at bp) | 320 | Calculated |
| Specific heat (kJ/kg·K) | 2.0 / 2.1 | Calculated |
| Heat conductivity at 20°C (W/m·K) | 0.13 | Calculated |
| VOC (g/L) | 960 |
Show links
Hide linksThis is a product
MAIN CONTRIBUTORS WHICH REDUCE IMPACT:
HUMAN HEALTH & SAFETY
- Non-flammable & high flashpoint
- Non-toxic, no corrosive impact & no safety risk phrases
ENVIRONMENT PROTECTION & RESOURCES SAVINGS
- No GWP
- No environmental hazard: no H labelling
- Recycable packaging used
Benefits
Performance
- Excellent solubility of a variety of oils
- Excellent water or water-soluble oil retention, even for complex geometric parts
- Compatibility with all metals, glasses, ceramic & many plastics
Cost
- Supply-chain optimalization – one product for different processes
- Allows reduction in water consumption
HSE
- No CMR substances
- No Ozon Depletion Potential (ODP)
- No Global Warming Potential (GWP)
- Relative high flash point – safe to use, storage & transport
- No aromatics & halogenated compounds
Process examples
The best process will depend on factors such as operating conditions, equipment, desired cleaning time and the nature of contaminants. Our team is ready to advise you.

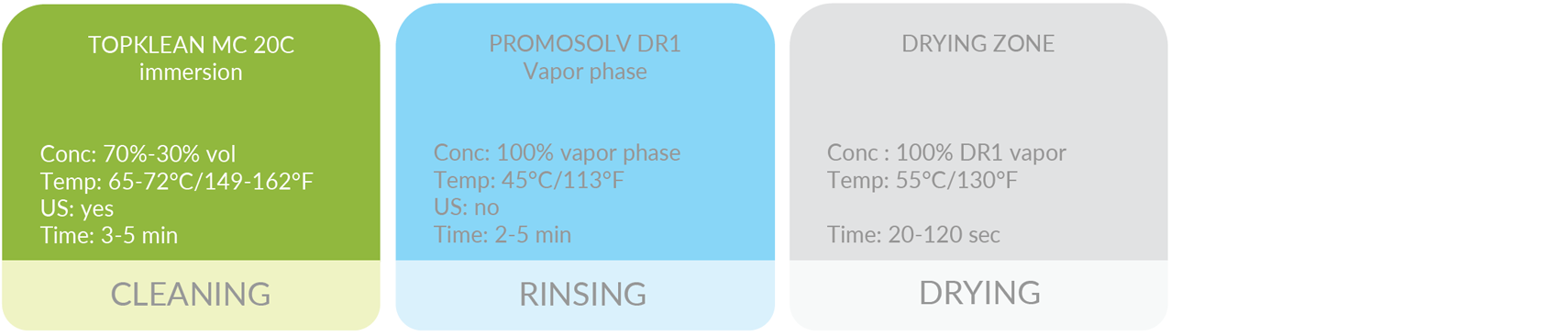

Oil removal in mixed co-solvent process
TOPKLEAN MC 20C
immersion
immersion
Conc: 70%-30%
Temp: 65-72°C/149-162°F
US: yes
Time: 3-5 min
PROMOSOLV DR1
vapor phase
vapor phase
Conc: 100%
Temp: 45°C/113°F
US: no
Time: 2-5 min
DRYING ZONE
Conc: 100% DR1 vapor
Temp: 55°C/130°F
Time: 20-120 sec
