THERMASOLV CF1
Dielectric Cooling Fluids for electronic & electric devices
- Dielectric heat transfer fluid
- Boiling point: 170°C / 338°F
- High critical temperature
THERMASOLV CF1
Is a dielectric heat transfer fluid, dedicated for a broad range of electric and electronics cooling and testing applications, including immersion and direct liquid cooling, semicon chillers, critical-temperature manufacturing, dielectric testing, batteries and charging stations. The favorable viscosity, density and surface tension allow optimal surface contact, contributing to superior heat transfer performance.
THERMASOLV CF1 has a boiling point of 170 °C/338 °F and is specifically designed for applications demanding the highest thermal headroom in the range, with a critical temperature of 300°C for stable operation at elevated temperatures.
Its high electrical insulation allows electronics and electrical devices to be immersed in the fluid under power. Combined with broad compatibility across metals, plastics and elastomers and excellent chemical stability, it is well suited for immersion cooling.
The chemical nature of THERMASOLV CF1 makes it also a suitable product as a tacky agent for preform-based die-attach soldering process. It is easy to spray and leaves no residues after evaporation in the reflow step.

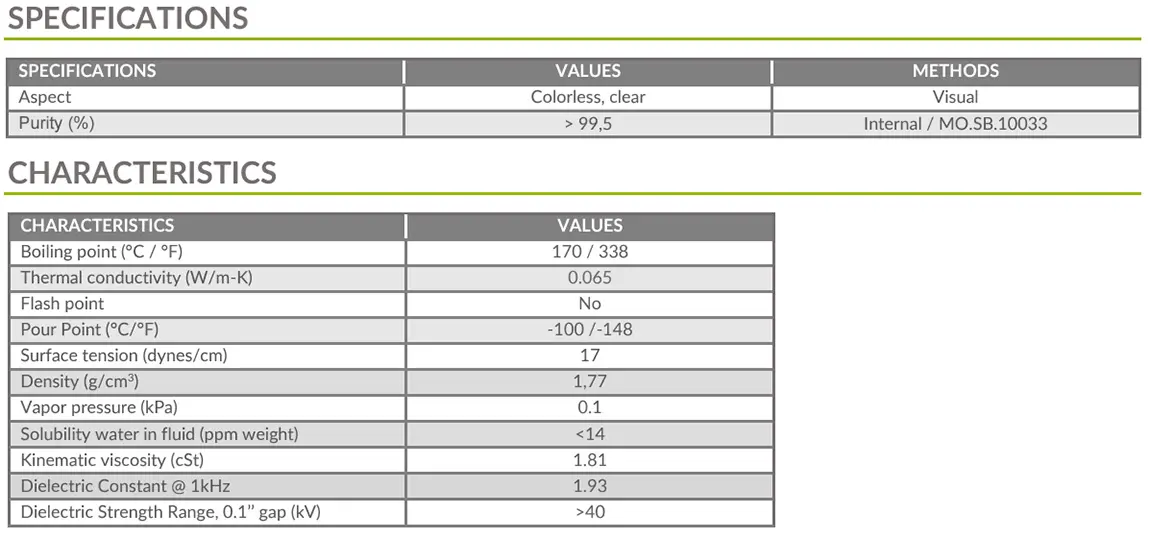

| SPECIFICATIONS | VALUES | METHODS |
|---|---|---|
| Aspect | Colorless, clear | Visual |
| Purity (%) | >99,5 | Internal / MO.SB.10033 |
| CHARACTERISTICS | VALUES |
|---|---|
| Flash point | No |
| Boiling point | 170°C/338°F |
| Pour Point | -100°C/-148°F |
| Critical Temperature | 300°C/572°F |
| Vapor pressure (kPa @20°C) | 0,1 |
| Liquid density (Kg/m3 @20°C) | 1770 |
| Kinematic viscosity (cSt @20°C) | 2,2 |
| Specific Heat (J/kg-K @25°C) | 1030 |
| Surface tension (dynes/cm²) | 17 |
| Dielectric strength (kV) | >40 |
| Dielectric Constant @1kHz | 1,9 |
| Resistivity (Ohm-cm) | 1,00E+13 |
| Thermal conductivity (W/m-K) | 0,062 |
| Water content spec (ppm) | 15 |
| Solubility water in fluid (ppm weight) | <14 |
This is not a product
Although fully in line with safety & environmental regulations, this product doesn’t match our strict criteria to be labelled as a Greenway product.
LOOKING FOR A MORE SUSTAINABLE SOLUTION?
GREENWAY ALTERNATIVE
Discover more about Greenway
Benefits
Performance
- Excellent thermal conductivity
- Very low surface tension
- High electrical insulation
- High critical temperature
Cost
- Thermally and chemically stable in use
- Can be returned for recycling and re-use
HSE
- No ODP
- Non-flammable & no flashpoint
Process information
Processes
The product can be used in the following processes:
- 1-phase immersion cooling
- 1-phase direct liquid cooling, where the fluid flows through cold plates or tubes
- Specific manufacturing processes which need stable and uniform cooling
- Dielectric testing
- Tacky agent for preform-based die-attach soldering
Temperature limits
1-phase system
- Recommended Temperature Minimum: -100°C / -148°F
- Recommended Temperature Maximal: 160°C / 320°F
