AMTECH 4300 Solder Wire
Advanced no-clean Core Wire for Consistent Soldering Results
- No clean core wire
- Leaded core wire
- 4300 flux system
AMTECH 4300 Solder Wire
Is a water washable no-clean core wire, designed for leaded and tin-lead alloys. 4300 was designed for hand soldering and re-work applications. The core provides sufficient activity to solder successfully to bare copper and other hard to solder surfaces. The residue is a light amber color.

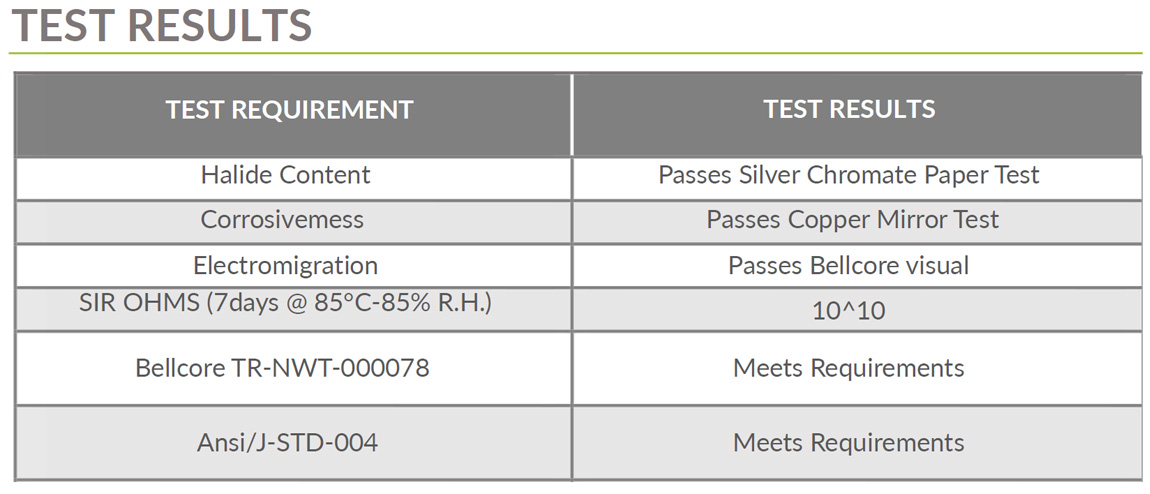

TEST RESULTS
| TEST REQUIREMENT | TEST RESULTS |
|---|---|
| Halide Content | Passes Silver Chromate Paper Test |
| Corrosivemess | Passes Copper Mirror Test |
| Electromigration | Passes Bellcore visual |
|
SIR OHMS (7 days @ 85°C / 85% R.H.) |
1010 |
| Bellcore TR-NWT-000078 | Meets Requirements |
| ANSI/J-STD-004 | Meets Requirements |
Show links
Hide linksBenefits
- REL0 flux classification
- Alloy: Sn63/Pb37
- Temperatures: Sn63/Pb37 Eutectic @ 183°C
- Flux Percentage: 1.1%, 2.2%, 3.3%
- Standard diameters: .010”, .015”, .020”, .031
- Standard Roll Size: 1 LB
